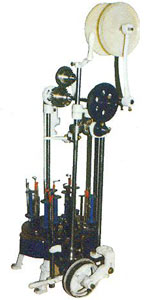

Bench High Speed Braiding Machine
| Number of carriers |
8 to 100 & more |
| Bobbin dimensions |
Ø42mm x 110mm |
| Motor Power |
1.0 HP for six |
| |
machine of 16 carriers. |
| Horngear speed |
220 rpm (max.) |
| Carrier number of turns per minute |
30, 15 |
| Take off |
A set of groove |
| |
gears/10 inch |
| |
capstain |
| |
|
-
Horngears with bearing for smooth operation.
-
Spring loaded carriers in two pieces.
-
Machines are suitable for braiding small dia.electric cables, cords,
packing laces, sutures & insulation sleeves & cords.
|
|
|
