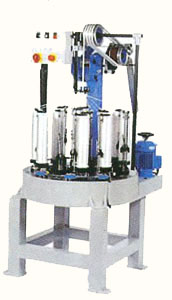

Yarn Braiding Machine


Number of carriers 08 to 96 & more
Bobbin dimensions 58mm x 160mm


  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 220 rpm & also available to get different picks per cm./inch.
  • Machines for textile braiding of yarn, braided ropes, tubes.
  • Braid knotting tension of the carrier - 1.0 kgs to 3.5 kgs & more.

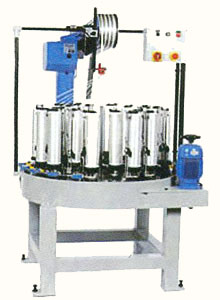

Yarn Braiding Machine


Number of carriers 12 to 96 & more
Bobbin dimensions 70mm x 225mm
Motor power (As per model selection) 1.0 HP to 15 HP

  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 200 rpm & also available to get different picks per cm./inch.
  • Machines for textile braiding of yarn, braiding long length, low pressure hoses & tubes.
  • Braid knotting tension of the carrier - 2.5 kgs to 5.4 kgs & more.

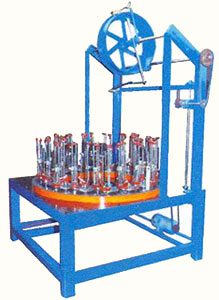

Yarn Braiding Machine

Number of carriers 12 to 96
Bobbin dimensions 90mm x 225mm,
  90mm x 270mm

  • Horngears with bearing for smooth operation.
  • Spring loaded carriers in two pieces.
  • Optional electric panel for speed variation from 0 rpm - 150 rpm & also available to get different picks per cm./inch.
  • Machines are also in two plates.
  • Braid knotting tension of the carrier - 3.6 kgss to 6.5 kgs .
