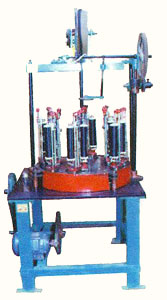

Solid Cord Braiding Machine
| |
|
| Number of carriers |
9, 12 & 18 |
| Bobbin dimensions |
 55mm x 160mm, |
| |
70mm x 225mm |
| |
|
|
Solid cord braiding machines differ from the more familiar type
braiders as all carriers travel in the same direction, one carrier
going under the two proceeding it, forming a cord by producing a
series of lock stitches.As the cord forms, it is drawn through a former, which keeps the cord central against the pull of the several
carriers, thus forming an even, round and solid cord.
These machines are designed and intended for use where a solid
braided rope is required without a core. They can, if necessary, be
used with a core.
These machines are used in the manufacture of marine cords,
window sash cords, clothes line, signal pull rope, awning line,
curtain cord, and for many purposes where a solid, non-
kinkable rope is desired. |
|
